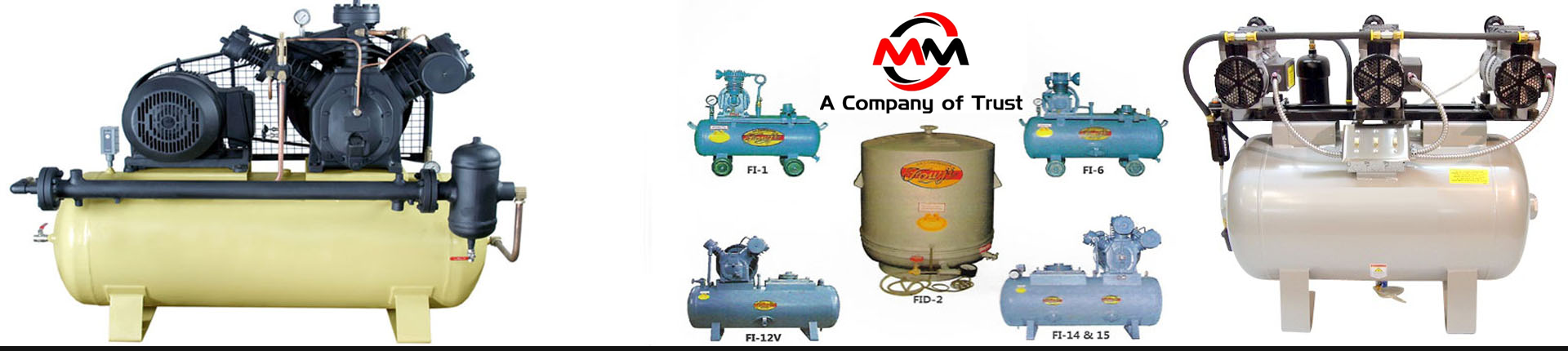

Compressors Products
FI-4
| H. P. | 1 |
| No. of Cylinder | 1 |
| R.P.M. of Compressor | 900 |
| Bore & Stroke in mm | 900 |
| Piston Displacement cu.ft.per/min | 5.00 |
| Max. Tank Pressure p.s.i | 150 |
| Max. Tank Capacity mm | 305 x 762 |
| Tank Capacity Litres | 66.80 |
| Tank Capacity Imperial Gallon | 14.69 |
| Approx. weight w/o. Motor kgs | 50 |
Featured Product
Body: Compressor’s body are made from high grade castings.
Piston: Made of special cast Iron & Alluminium Alloy.
Crankshaft: Is made of special Forged steel ground to the close tolerance for high effeciency.
Connecting Rod: Made from bronze or Forged steel.
Air Receiver: Made from mild steel & hydraulically tested, safety valve, Non return valve, Air cock & drain cock are made from brass.
Automatic pressure switch: Which stops electrically, the motor when the air in the tank raises up to the pre-equalated pressure & the pressure goes down. The motor will automatically run again to compress the air.
